Introduction

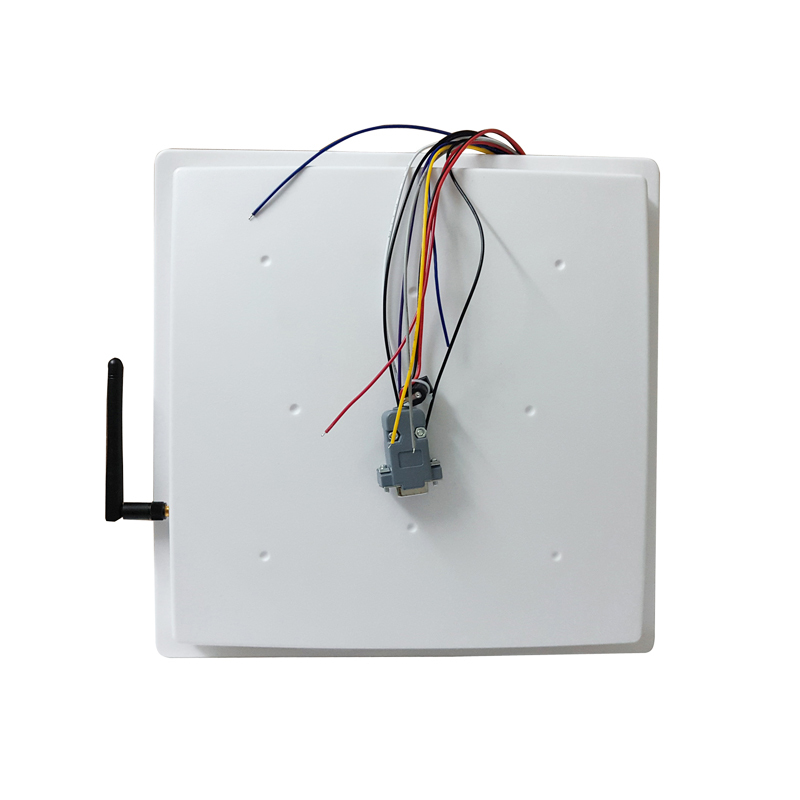

The RF-8080 RFID Reader is a new andinnovative antenna built-in integrated RFID Reader which is complied with IS018000& EPC CLASS 1 GEN2 RFID card and tags. It solves many problems associatedwith remote and moving objects reading and identifying successfully.

Model

RF-8080A RS232/RS485/Wiegand (Standard)

RF-8080B RS232/RJ45 (Customized)

RF-8080W RS232/WIFI (Customized)

Specification

1)WorkingFrequency:   902~928 MHz(USA)or 865~868MHZ (European)

2)SupportProtocol:   ISO18000-6C(EPC CLASS1 GEN2)

3)Encryption: Can encrypt directly, anti-copy

4)Transmitpower: 0dBm~ 30dBm (Adjustable by software)

5)Software & SDK: DEMO and C#,VC, Java SDK

6)Anti-thunder: 6000V

7)Readingdistance: Up to 5M (according to tag and environment)

8)Frequency modulation: Hopping orfixed frequency

9)Antennagain: 8dBi circular polarization

10)ReadPrompt: Buzzer
11)Power: DC12V,3A

12)Reader size: 280mm×280mm×40mm

13)Packagesize: 430mm×330mm×130mm

14)Weight: 3kg

15)Material:ABS

16)Working Temperature:-40 ~ +65 °C

17)StorageTemperature: -45 ~ +95 °C

Customized Option

TCP/IP RJ45 Interface

WIFI

2 way relay output, 2 way I/O input

Application

Logistics management

Parking lot management

Highway ETC system

Asset tracking

Production automation management
